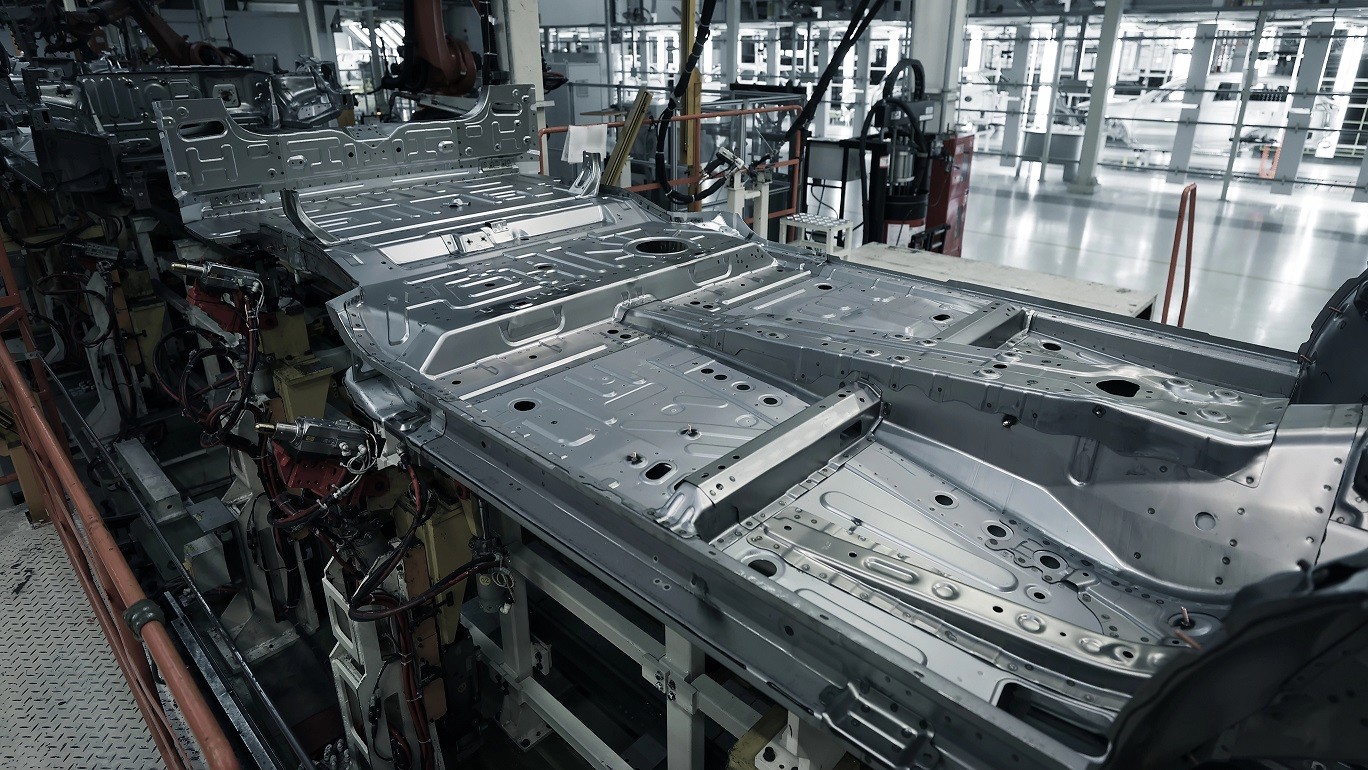

Our water-based, self-drying coating, crafted specifically for vehicle axle castings and key automotive components such as axle beams, chassis parts, and e-vehicle battery carriers, champions eco-friendliness and efficiency. It is tailored for large items that can't be cured by traditional baking, ensuring rapid air drying in 10-30 minutes without the need for extra energy or drying machinery.
●Primer Coating:
Our primer establishes a sturdy foundation for axle castings. Whether it's aluminum, primed surfaces, or
galvanized components, it intensifies the adhesive strength of the coating, ensuring a seamless bond
with the casting, paving the way for subsequent layers.
● Colored Coating:
Our colored paint offers a diverse range of colors and gloss options. Beyond maintaining the original
aesthetic appeal of the axle castings, it boosts market attraction. Its distinctive weather resistance
ensures the product maintains its fresh appearance for an extended period.
●Clear Coating:
This transparent coating shields against corrosive agents and withstands challenges like stone chipping.
It also bolsters impact and abrasion resistance, ensuring durability.
Product Specifications |
Main Component: Water-based TP system |
Diluent: Pure water |
Mixing Ratio |
1 part |
0.3-0.5 parts |
Filter Mesh |
Using a 200-300 mesh sieve |
|
Spray Gun, Air Pressure |
3-4gf/cm2 |
|
Film Thickness |
10±2um |
|
Drying Method |
Air dry Note: For accelerated curing ( Bake at 60°C for 30 minutes) |
|
Packaging Conditions |
After stabilizing at 60°C for 30 minutes, allow 3-5 hours for complete cooling before packaging. |
|
Physical Testing Conditions |
60°C (2-4 hrs) or 80°C (1-2 hrs), stabilize for 4-6 hrs, then proceed with physical tests. |
|
Suitable Substrates |
Metal hardware、Metal products、ABS、ABS+PC、PC、PS、PVC. |
Test Items |
Test Conditions |
Test Results |
|
1 |
Adhesion |
The sample is placed flat and scored both horizontally and vertically using a 100-grid knife. After cleaning the scored section, 3M#610 tape is applied over the grid. The tape is then pulled off at a 45° angle three times, resulting in a 5B adhesion rating. |
5B |
2 |
Hardness |
Sharpen a Mitsubishi H-grade pencil on sandpaper. Apply 500g weight and glide at a 45° angle from F to H. Ensure no scratches |
F-H No scratches |
3 |
Film Thickness |
Electronic coating thickness gauge |
10±2um |
4 |
Alcohol Resistance Test |
Rubbing Material: Cloth saturated with 99.5% alcohol. Load: 500g. Rubbing Distance: 3cm per cycle. Frequency: 30 cycles per minute. Criteria: The coating should exhibit no exposure of the underlying material (paint) after more than 200cycles. |
No substrate exposure observed |
5 |
High Temperature and Humidity Resistance |
Exposed to 65℃ and 95% humidity for 120 hours, followed by a 6-hour recovery at room temperature. Post-examination shows no abnormalities with a 5B pencil hardness test result. |
No visible abnormalities, 5B hardness achieved. |
6 |
High Temperature Storage
|
Stored in a 70℃ environment for 48 hours, then allowed 4 hours to return to room temperature. Post-examination shows no abnormalities with a 5B pencil hardness test result. |
No visible abnormalities, 5B hardness achieved. |
7 |
Low Temperature Storage
|
Placed in a -40℃ environment for 48 hours, followed by a 4-hour recovery at room temperature. Post-examination shows no abnormalities with a 5B pencil hardness test result. |
No visible abnormalities, 5B hardness achieved. |
8 |
Thermal Shock Resistance |
Alternated between 80℃ and -40℃, each temperature held for 1.5 hours with a 20-minute transition time, for a total of 20 cycles. Allowed 4 hours of recovery at room temperature. The surface should show no discoloration, blistering, peeling, shedding, or gloss variance. |
No visible abnormalities, 5B hardness achieved. |
9 |
Temperature and Humidity Cycling
|
Alternated between 65℃ at 95% humidity and -40℃, each condition held for 1.5 hours with a 20-minute transition time, for a total of 20 cycles. Allowed 4 hours of recovery at room temperature. The surface should show no discoloration, blistering, peeling, shedding, or gloss variance. |
No visible abnormalities, 5B hardness achieved. |
